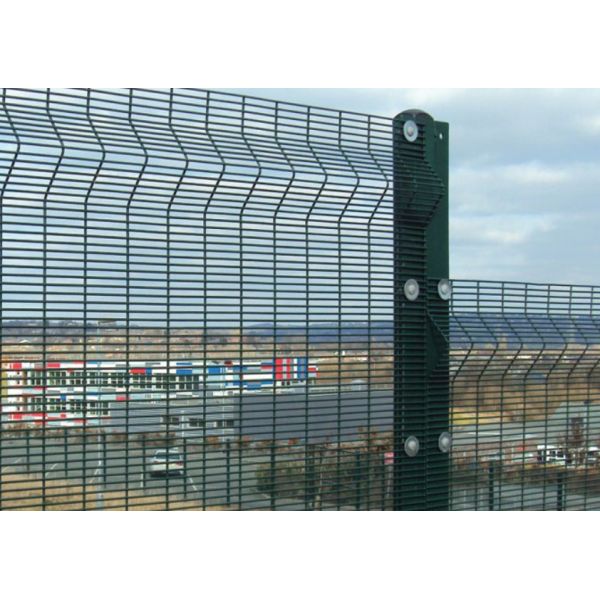

Description of 358 Security Fencing
Why is it called 358 Security Fence? '358' comes from its measurements 3" × 0.5" × 8 gauges which equates to approx. 76.2mm × 12.7mm × 4mm (Length × height × Diameter) in metric.
358 security fences are extremely difficult to penetrate, with the small mesh aperture being effectively finger proof, and extremely difficult to attack using conventional hand tools. 358 fences are recognized as one of the most difficult to break through the barrier, because it is difficult to climb. It is called security fencing and high- strength fencing. 358 security fencing panel can be bent in part to enhance the aesthetic effect.
While 3510 Security Fencing has many of the attributes of 358 Security Fencing and its main strength is it's lighter. Using 3mm wire instead of 4mm allows even better visibility allowing a wider variety of applications. It’s lighter and cheaper so it's ideal for commercial applications.
- Material: Low Carbon steel wire Q195
- Type:Welded mesh
- MOQ:10 sets
- Surface Treatment: Electric galvanized,hot dipped galvanized, spray, PVE coated, PE coated
- Technique: Welded
- Usage: Used for garden,road,playground,park etc
- Packaging Details:
Packed with plastic film then on the pallets and then in wooden box
Specifications of 358 Security Fencing
| Specification of 358 Security Fencing |
| Mesh Opening | Wire Diameter | Panel Height | Panel Width | Post Type |
12.7x76.2mm
(0.5'' x 3'') | 3/3.5/4mm | 1.2-6m | 2.0-3.1m | Square Post(SHS)
60x60x2.0/2.5/3.0mm
80x80x2.0/2.5/3.0mm | Rectangular Post(RHS)
40x60x2.0/2.5/3.0mm
40x80x2.0/2.5/3.0mm
60x80x2.0/2.5/3.0mm
80x100x2.0/2.5/3.0mm |
| Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating. |
| Color:RAL 6005 green, RAL 7016 gray, All RAL color can be customized. |
| Note:The fence can be customized according to your required if above specification is not satisfied with you. |
| 358 fence | 2.1m | 2.4m | 3.0m |
| 358 fence hight | 2134mm | 2438mm | 2997mm |
| 358 fence width | 2515mm | 2515mm | 2515mm |
| 358 fence hole size | 12.7*76.2mm | 12.7*76.2mm | 12.7*76.2mm |
| wire | 4mm | 4mm | 4mm |
| wire | if need other wire diameter can order |
| 358 fence posts | 60*60*3mm | 60*60*3mm | 60*60*3mm |
| 358 fence posts length | 2.8m | 3.1m | 4.0m |
| no of fixings | 8 | 9 | 11 |
Features of 358 Security Fencing
Effective Deterrence
The DutyGuard security fence system is designed to present a strong barrier against attack, featuring heavy welded wire panels that deters vandalism and break-ins, while offering critical visibility.
Anti-Cut & Anti-Climb
DutyGuard security mesh protects against both cutting and climbing, with heavy gauge mesh and small mesh openings that resist common cutting tools and hand or foot holds.
Long Service Life
High quality galvanized steel and aluminum components provide for a long service life. This system is also available with a super-durable, Architectural Grade Powder Coating.
Superior Coating
DutyGuard is available with Betafence USA’s exclusive super-durable powder coating, protecting the fence and gates from weather and U.V. aging. This ensures the barrier will retain its appearance and structural integrity for many years, with a minimum of upkeep or maintenance.
Surface treatment of 358 Security Fencing
1> Electric Galvanized Then PVC Coated(powder thickness 0.1mm)
2>Electric Galvanized Then Powder Coated(powder thickness 0.8-1.2mm)
3>Hot Dipped Galvanized Then PVC Coated(powder thickness 0.1mm)
4>Hot Dipped Galvanized Then Powder Coated(powder thickness 0.8-1.2mm)
5>Hot Dipped Galvanized After Welded(zinc coating: 40-500g/m²)
Applications:
- Bridge anti-climb guarding & guard ety screening.
- Psychiatric hospital security fencing.
- Prison security fencing.
- Factory machine guards.
- Walkway security fencing.
- Airport security fencing.
- Shipping Port Security fencing.
- Electrical sub-station fencing.
- Gas pipelines security fence.
- High security living area and private field fence.
Packing of 358 Security Fencing
- Fence Panel Packing:
1. Plastic film at the bottom to avoid the panel destroyed.
2. 4 metal corners to ensure the panel strong and uniform.
3. wood plate at the top of the pallet.
4. pallet tube size:40*80mm tubes at the bottom vertical position.
Fence Post Packing
1. Plastic cap cover onto the post.
2. Plastic film + metal pallet for fence post.
Accessories Packing:
1. Stainless steel nuts and screws install with clips.
2. 5 sets clips load into one plastic bag.
3. 12 bags into one carton box.-
