Powder Coated 656 Double Loop Wire Fencing Twin Wire Fence RAL 6005 Fence
Product Description
YuanHai Twin Wire Mesh Panel and post system is an extremely strong mesh panel system with a flat profile made (as the name suggests) with "twin" horizontal wires to provide and exceptionally rigid fence.
The twin horizontal wires welded to 5mm verticals, often referred to as 656. This system is also available in extra heavy duty 868 specification which has 8mm twin horizontal wires welded to 6mm verticals.
The Twin Wire Fencing(also called double wire mesh fence) system can be supplied in a range of heights including 1m, 2m and 2.4m and by combining panels a range of fence heights can be achieved up to at least 4m.
The hesly twin's robust flat profile makes this fence ideal for use in sports applications including Ball Stop fencing and MUGAs (Multi-Use-Games-Areas). Use of the heavier 868 panels at lower level is recommended where there will be hard ball impacts.
Specification
| Wire Dia | Mesh Size | Panel Width | Panel Height | Post Height | Post Model |
| burying style | base style |
5/4/5mm;
6/5/6mm;
8/6/8mm; | 50*100mm;
50*200mm;
50*50mm;
55*100mm;
55*200mm;
55*55mm | 1.0-2.5m | 1.03m | 1.4m | 1.2m | Square;
Peach;
Round
swallowtail |
| 1.23m | 1.6m | 1.4m |
| 1.53m | 2.0m | 1.7m |
| 1.73m | 2.2m | 1.9m |
| 1.83m | 2.3m | 2.0m |
| 2.03m | 2.5m | 2.2m |
| Color | RAL6005,RAL9005,RAL9010,other color can make as your interesting |
Process
Straightening and cutting short - Welding - Galvanized - Powder coated - Packaging - Shipping
Packaging
Fence Panel:
1) It has a rubber mat at the bottom of the pallet to avoid the pallet destroyed the panels;
2) It has 4 metal corners to keep the pallet more strong;
3) It has a metal plate under the plastic bandage to reduce the pressure of fence panels;
4) It has the wooden plate at the top of fence panel which can protect the fence panels avoid being crushed by other pallets.
Fence Post:
1) The caps have been installed on the top of the post, which reduce your labour cost and installing time;
2) Each post are packed by a long plastic bag avoiding damaged by friction;
3) All posts are packed by the metal pallet for loading and unloading.
Fence Accessory:
All accessories are packed in a small plastic bag, then by carton box.
Advantages
- Double horizontal wires
- The quality is the result of high grade raw materials and meticulous processing
- Extremely high resistance to vandalism combined with excellent visibility through the fence
- A long service life with little or no maintenance required is its best feature
Application
Double Garden Fence Panels/Twin Frame Wire Mesh

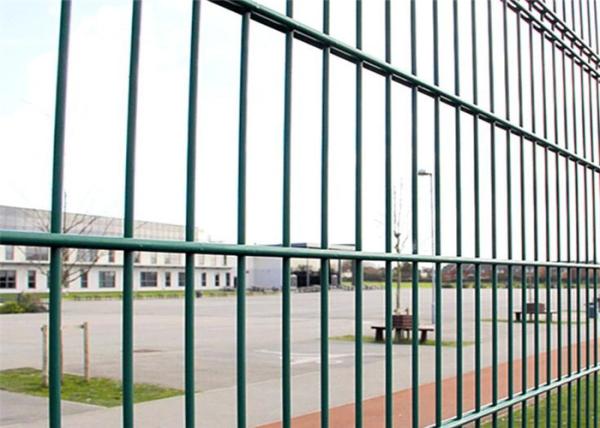

Double wire mesh fence is also named as double rod fence panel or double rod gratings (grid fencing).Double wire fencing is a rigid yet unobtrusive mesh fencing system.It is often used as a perimeter fence for industrial or commercial premises and sport pitches where a strong mesh fencing system is required.
Company Profile
1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
Product Tags:
|
|
656 RAL 6005 Outdoor Double Loop Wire Fencing Heavy Duty Smooth Surface Images
|
